Loading Paper into a KR203 Printer

• The purpose of this guide is to provide a walkthrough of the process of loading paper into a KR203 printer found in Cumberland and Rockland kiosks
• This guide is intended for the personnel responsible for maintaining the kiosk
• If you require any assistance past what this guide provides, please contact Versatile Credit Customer Support
  • Email: support@versatilecredit.com
  • Phone: 866-803-3369

Before You Begin

Before beginning the kiosk installation, be sure that you have the following:

1. The key to open the kiosk
2. A roll of large thermal paper

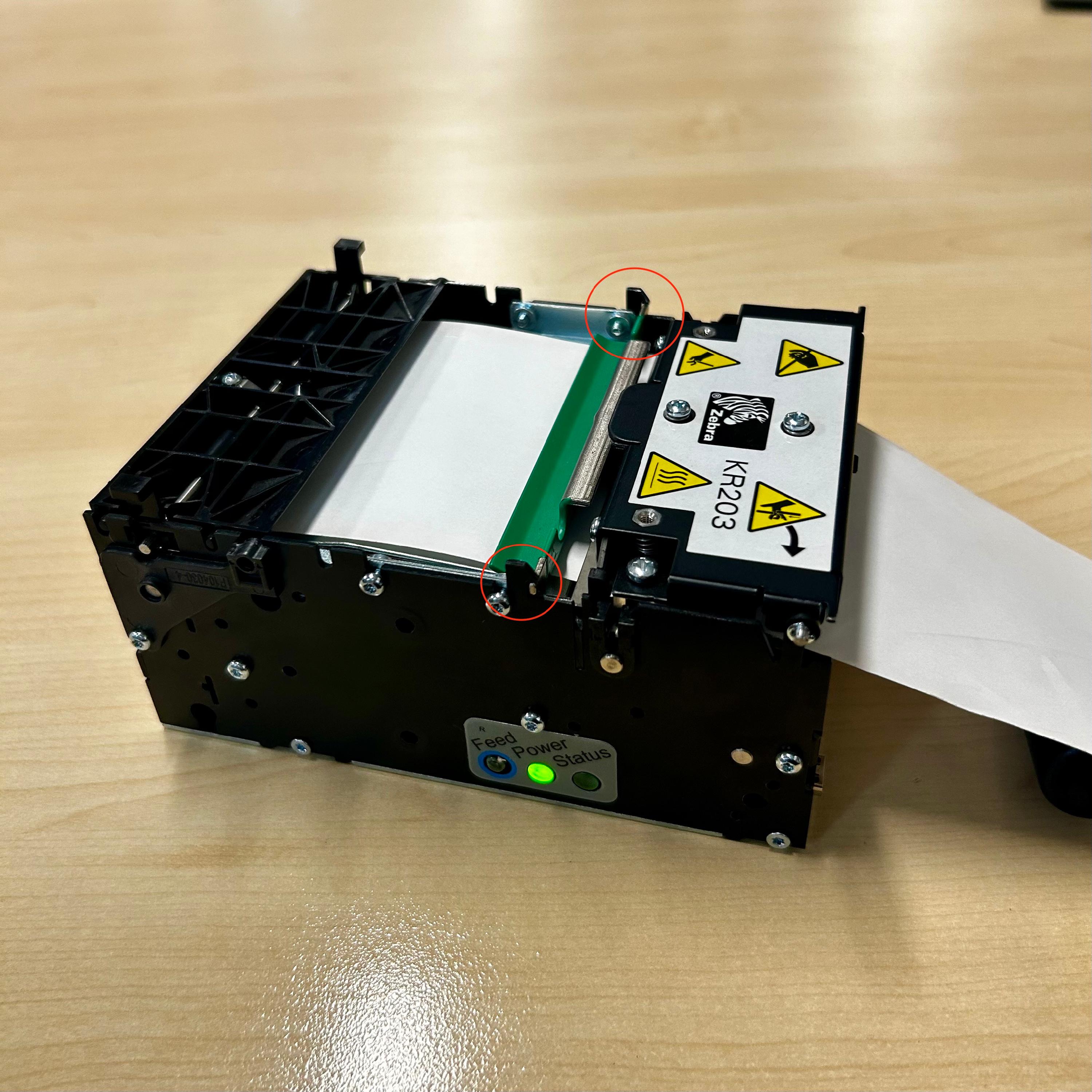

Confirm that your kiosk has a KR203 printer, as shown below.

If the printer in your kiosk is not a KR203, please see:

• Loading Paper into an SK1 Printer
• Loading Paper into a TSP-100 printer

Step-by-Step Guide

Method 1

1. Open the kiosk to access the printer.

2. Place the thermal paper roll on the paper holder, ensuring that the roll goes counterclockwise.



3. Begin pushing the paper through the available slot on the back of the printer



4. After pushing a certain amount, the printer will begin to pull the paper through and cut off the excess automatically



5. The printer is now ready for use.

Method 2

1. Open the kiosk to access the paper.

2. Place the thermal paper roll on the paper holder, ensuring that the roll goes counterclockwise.



3. Pull back the green tab on the printer head to remove it from the locking hooks, as shown below





4. Insert the paper through the available slot on the back of the printer.



5. Close the printer head, ensuring that the green tab enters the locking hooks



6. The printer will begin to pull the paper through and cut off the excess automatically.
7. The printer is now ready for use.
